Lugar de origem:
Henan, China
Marca:
Lanphan
Certificação:
CE
Vídeo

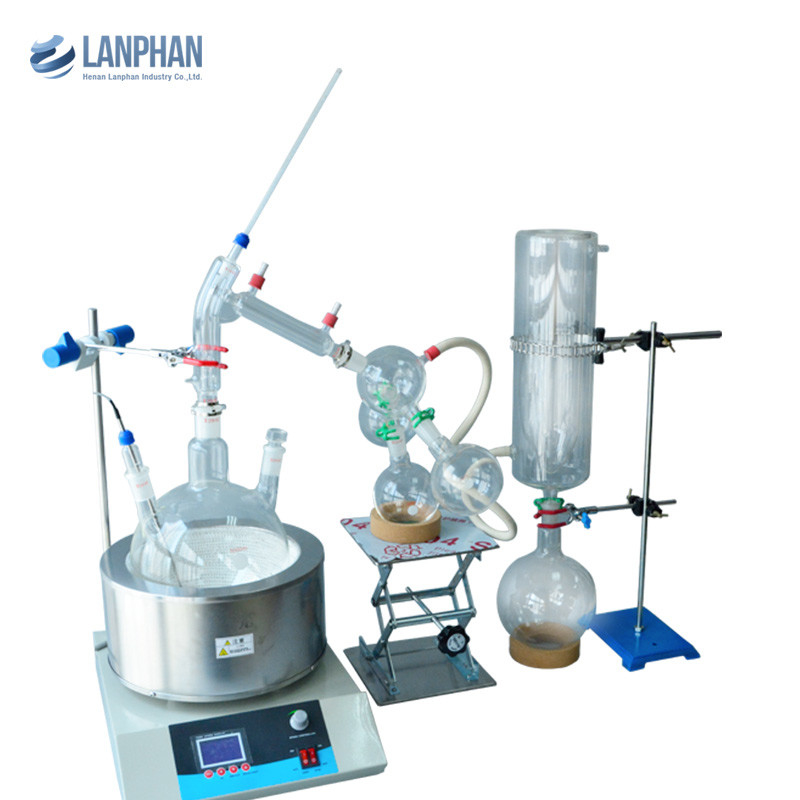

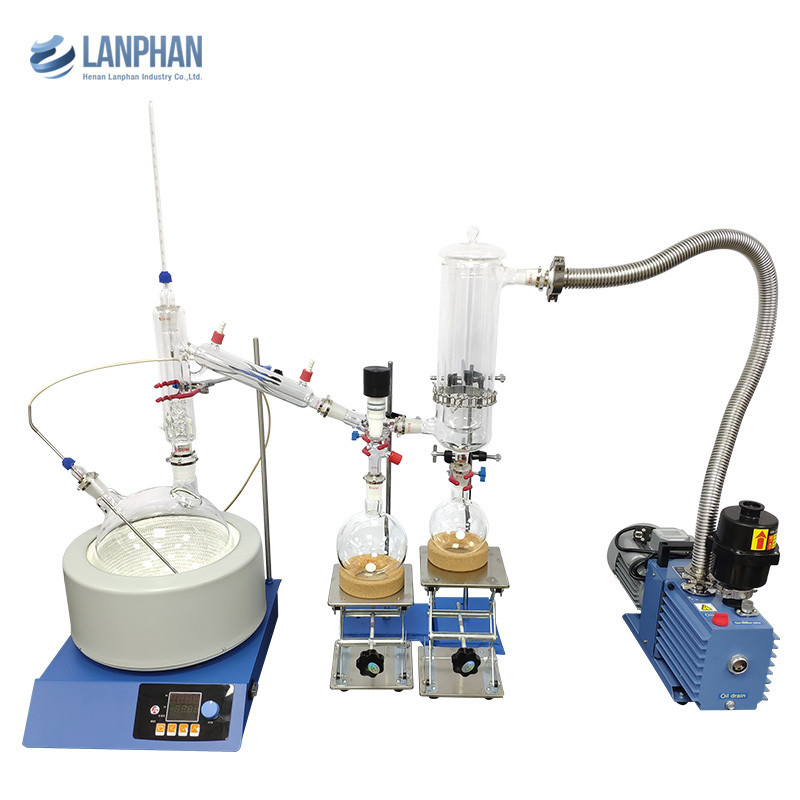

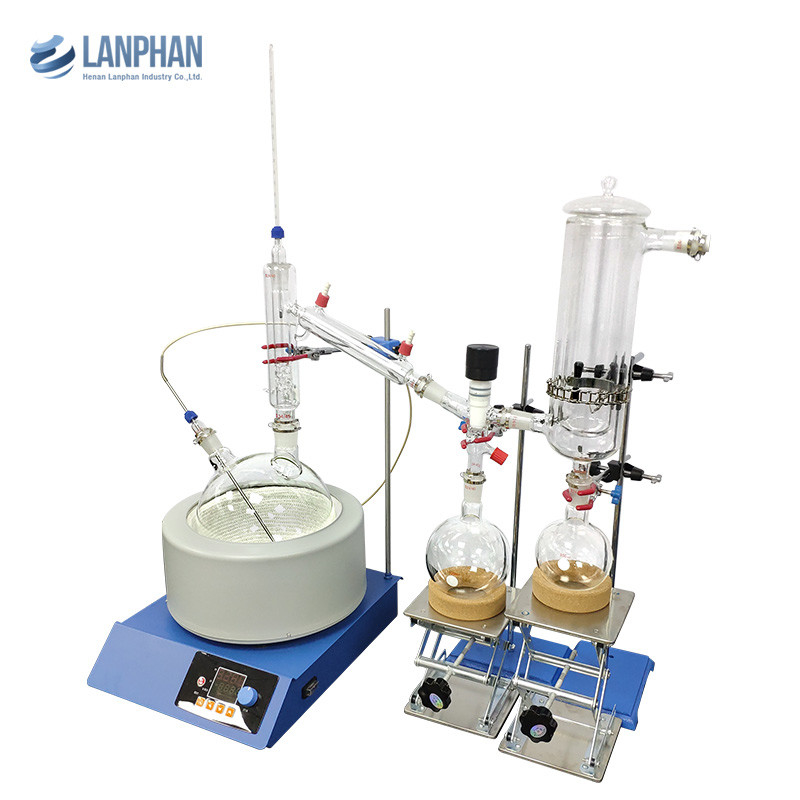

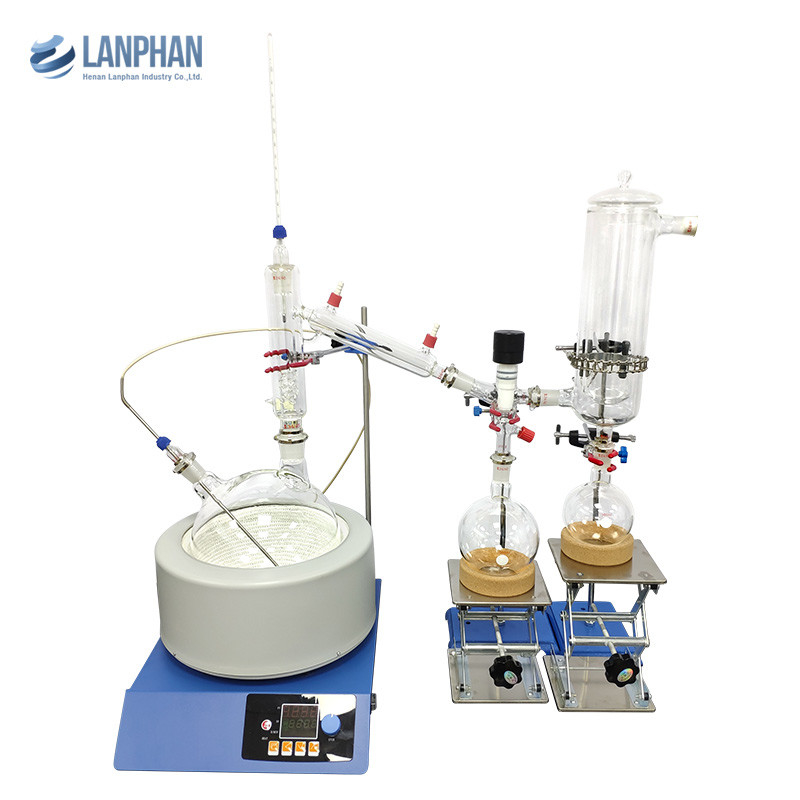

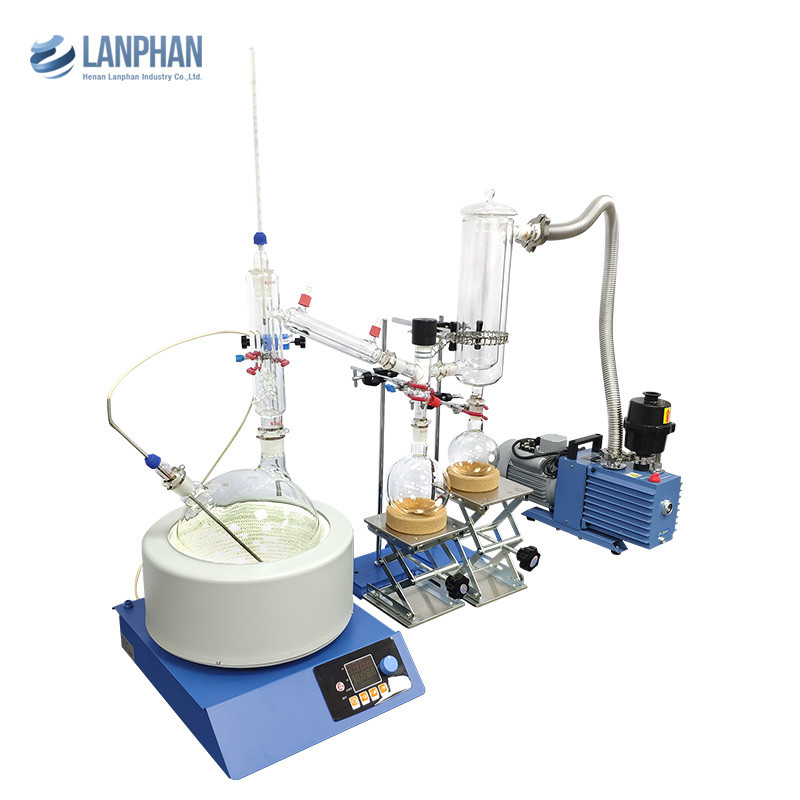

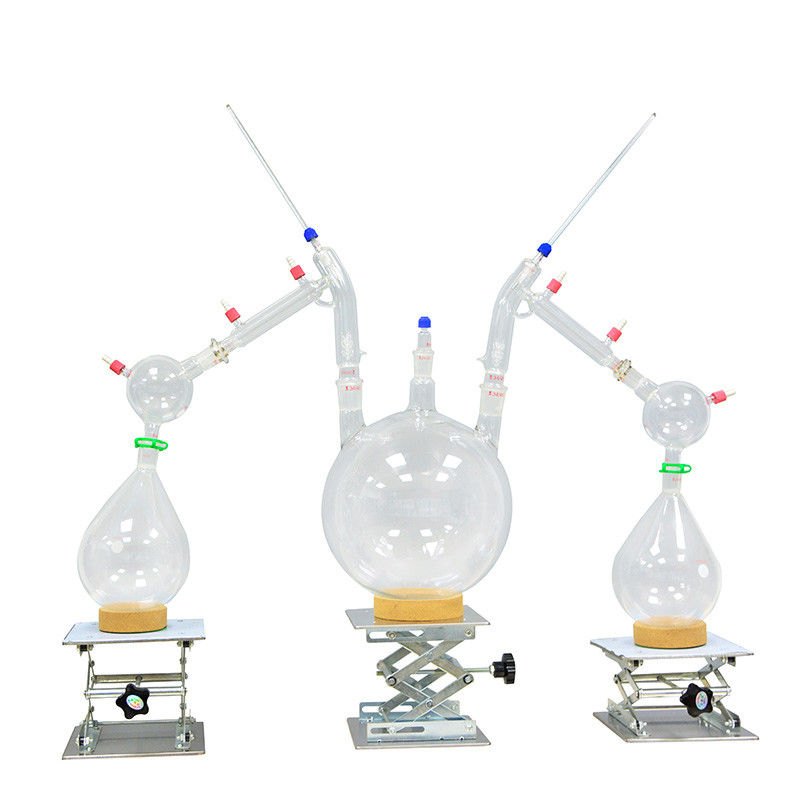

Short Path Distillation Equipment
| Short-Path Distillation | ||||
| Model | SD-2 | SD-5 | SD-10 | SD-20 |
| Material | G3.3 | |||
| Heating Capacity(ml) | 2000 | 5000 | 1000 | 2000 |
| Heating temperature(°C) | Room temperature -250 | |||
| Accuracy(°C) | ±1 | |||
| Vaccuum Degree(Mpa) | 0.098 | |||
| Working temperature(°C) | 5-40 | |||
| Voltage | 220V/50Hz or 110V/60Hz | 380V/50Hz | ||
| Package Size | 450*450*600 | 580*580*735 | 850*850*600 | |
| Weight | 18 | 24 | 30 | |
| parts name | Specification | No. | Unit | |
| 1 | 2-neck Round Bottom Flask | 5000ml,34/45,24/40*2 | 1 | piece |
| 2 | Distiller | 34/45,24/40,14/20 | 1 | piece |
| 3 | Fractionating device | 250ml,24/40*4 | 1 | piece |
| 4 | Round Bottom Flask | 500ml,24/40 | 3 | piece |
| 5 | cold trap | 70*250mm,24/40 | 1 | piece |
| 6 | cold trap cover | 70mm | 1 | piece |
| 7 | Receiving Flask | 1000ml,24/40 | 1 | piece |
| 8 | Temperature casing pipe | 14/20 | 1 | piece |
| 9 | Temperature casing pipe | 24/40 | 1 | piece |
| 10 | Hollow plug | 14/20 | 1 | piece |
| 11 | Hollow plug | 24/40 | 2 | piece |
| 12 | funnel | 110mm,24/40 | 1 | piece |
| 13 | Mercury thermometer | 0-360°C | 1 | piece |
| 14 | GL14 Cover | 5 | piece | |
| 15 | mouth clip for Stainless steel bottle | 34# | 1 | piece |
| 16 | mouth clip for Stainless steel bottle | 24# | 1 | piece |
| 17 | mouth clip for plastic bottle | 24# | 4 | piece |
| 18 | silicone tube | 8*14 | 2 | meter |
| 19 | Wood pallet | 110mm | 1 | piece |
| 20 | Wood pallet | 120mm | 1 | piece |
| 21 | Lifting platform (stainless steel) | 150*150 | 1 | piece |
| 22 | iron stand | 140*200 | 1 | piece |
| 23 | Cross clip | 0-20mm | 2 | piece |
| 24 | Three claw clip | large | 2 | piece |
| 25 | Experimental chain clip | 1 | piece | |
| 26 | vacuum fat (50g) | 7501 | 1 | box |
| Total | 38 | |||
| 27 | magnetic stirrer heating mantle | ZNCL-T-5000ml | 1 | set |
| Accessories | main engine | 1 | piece | |
| Vertical rod | 500mm | 1 | piece | |
| Cross clip | 1 | piece | ||
| External sensor | 400mm | 1 | piece | |
| internal sensor | 1 | piece | ||
| Tetrafluoro rotors | 1 | piece | ||
| 28 | rotary vane vacuum pump | 2XZ-2 | 1 | set |
| 29 | Temperature Control Low-Temperature Coolant Circulation Pump | DLSB-5/20 | 1 | set |
| Packing and weight&size | ||||
| 1 | SD-5 | 680*530*335 | 1 | piece |
| 2 | 1 | piece | ||
| 3 | ZNCL-T-5000ml | 520*420*400,15.5kg | 1 | piece |
| 4 | 2XZ-2 | 585*225*380,22kg | 1 | piece |
| 5 | DLSB-5/20 | 600*430*880,58kg | 1 | piece |
Pre-Sales Service of short path distillation
According to 2000ml short path distillation using condition, technicians will offer rationalization proposals to assist clients to select proper types;
Provide detailed product performance specification;
Provide professional quoted price;
Provide 24-hour technical consulting reply.
In-Sales Service of short path distillation
Begin to supervise from raw material, its qualified rate can reach to 100%;
Whole manufacturing process are in strict accordance with promised procedure requirements, product qualified rate can reach to 100%;
Provide product’s inspection record of key junctures to customers;
Provide production schedule photos to customers at regular intervals;
Package and transport products strictly accordance with export standard.
After-Sales Service of short path distillation
Under the premise of correct installation, normal maintenance and using, we guarantee one-year warranty period;
When warranty period has expired, our sold products enjoys lifetime guarantee repair, we only charge cost price for changing product’s standard component and sealing component;
During installation and adjustment period, our after-sale service staff will communicate with customers frequently to know product’s running state in time. Assist customers to install and adjust products until customers are satisfied;
If product has malfunction during operation period, we’ll offer you satisfied answer in time. We’ll reply you within 1 hour and provide solution or send staff to spot within 24 hours after receiving maintenance notification.
Lifelong free technical support. Conduct satisfaction survey and inquiry equipment running condition to clients by telephone or e-mail semiannually from the first day of equipment running, put on records of acquired information.
