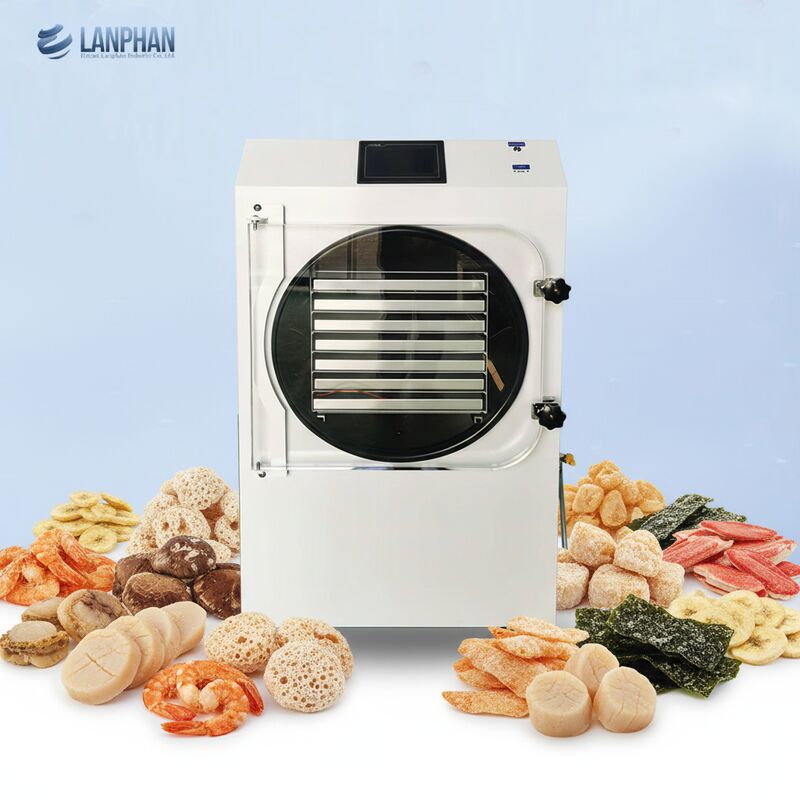

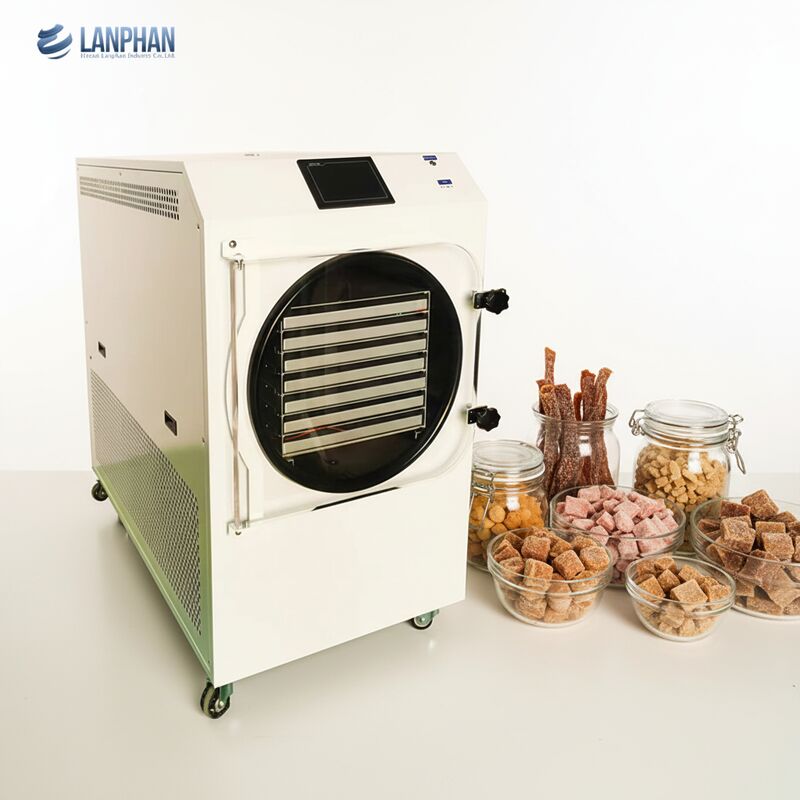

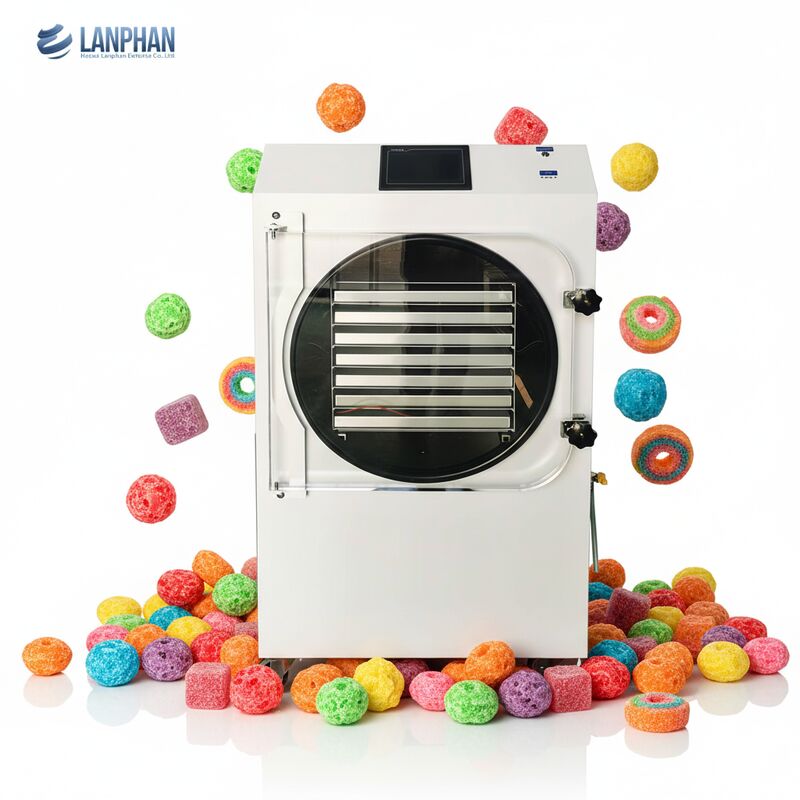

Name: Professional HFD-35 Freeze Dryer Ultimate Vacuum < 2Pa with 8L/S Pumping Rate
Brand: Henan Lanphan Industry Co.,Ltd
SKU: HFD-35
Price: 8999 USD
Availability: InStock

Para casa > produtos > Secador de gelo do vácuo >

Professional HFD-35 Freeze Dryer Ultimate Vacuum < 2Pa with 8L/S Pumping Rate

Professional freeze dryer with vacuum pump

8L/S pumping rate freeze dryer

Ultimate vacuum freeze dryer under 2Pa

Lugar de origem:

Henan, China

Marca:

Lanphan

Certificação:

Número do modelo:

HFD-35

Contacte-nos

Solicite um orçamento

Detalhes do produto

Tipo:

Liofilizador

Potência total:

5,5 kW

Tensão:

220V/50Hz (110V/380V)

Temperatura da Armadilha Fria:

-70°C

Capacidade:

50-55 kg/lote

Tamanho da bandeja do material:

400*600*30mm(14 bandejas)

Garantia:

12 meses

Serviço pós-venda fornecido:

Atendimento on-line

peso:

322 kg

Aplicativo:

Frutas, vegetais, líquidos...

Destacar:

Professional freeze dryer with vacuum pump

8L/S pumping rate freeze dryer

Ultimate vacuum freeze dryer under 2Pa

Termos de pagamento e envio

Quantidade de ordem mínima

1 unidade

Preço

$8999/unit

Detalhes da embalagem

Caixa de caixa de madeira

Tempo de entrega

10-30 dias úteis

Termos de pagamento

L/C, T/T, PayPal, Alipay ...

Habilidade da fonte

50 unidades por mês

PRODUTOS CONEXOS

Vídeo

5500W Power Vacuum Lyophilizer 3.5M2 Drying Area for Commercial Use

Obtenha o melhor preço

Vídeo

High-Efficiency 14 Trays & 50-55 KG/24H Ice Capacity HFD-35 Freeze Drying Machine

Obtenha o melhor preço

Vídeo

3.5 M2 Shelf Area & 35-40 KG Large Batch Capacity HFD-35 Vacuum Freeze Dryer

Obtenha o melhor preço

Vídeo

Industrial Freeze Dryer with Embraco Compressor &-55°C Cold Trap Temperature

Obtenha o melhor preço

Contacte-nos

+8613783661974

yang@lanphan.com

Contacte agora

Descrição do produto

3.5 M2 Shelf Area & 35-40 KG Large Batch Capacity HFD-35 Vacuum Freeze Dryer

Freeze Dryer Parameter

Professional HFD-35 Freeze Dryer Ultimate Vacuum < 2Pa with 8L/S Pumping Rate 0

Model	HFD-35
Tray space	3.5m2
Cold trap temperature	-70ºC
Number of trays	14pcs
Processing capacity	50-55 kg/batch
Material tray size	40060030mm
Power supply	220V/50HZ can be customized 110V or 380V
Layer Spacing	45mm
Overall power	5500W

Freeze Dryer Application

Professional HFD-35 Freeze Dryer Ultimate Vacuum < 2Pa with 8L/S Pumping Rate 1

Freeze Dryer Advantages

The 7-layer freeze dryer machine with 14 trays provides sufficient freeze-drying space.

Each layer has a temperature probe to ensure that each layer and each tray can be in a precise temperature environment

Dual compressors

1. Lower condensing temperature: Lower condensing temperature can be achieved, which can be as low as-70 ℃.

2. Stronger refrigeration capacity: two compressors work together, more refrigeration power, faster refrigeration.

3. Higher system stability: Each compressor in the dual compressor system has an independent control system and protection device.

4. More accurate temperature control.

Professional HFD-35 Freeze Dryer Ultimate Vacuum < 2Pa with 8L/S Pumping Rate 2

The water trap chamber and the drying chamber are separate.

1. Avoid cross contamination: Avoid the moisture or impurities in the water trap chamber to reverse pollute the materials in the drying chamber, so as to ensure the purity and quality of the product.

2.Improve drying efficiency: the drying chamber and the water capture chamber have independent temperature control systems and vacuum systems respectively, which canbe precisely regulated according to their respective needs.

Freeze Dryer Details

Professional HFD-35 Freeze Dryer Ultimate Vacuum < 2Pa with 8L/S Pumping Rate 4
